Equipment &Products

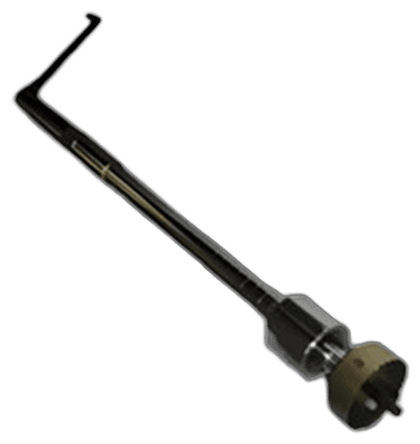

6 & 8 Series

• Operated manually or by pneumatic motor drive
• Maximum working pressure: 1480 PSI (102 BAR) @ 100°F (38°C)
• Maximum working temperature: 700°F (371°C) @ 700 PSI (48 BAR)

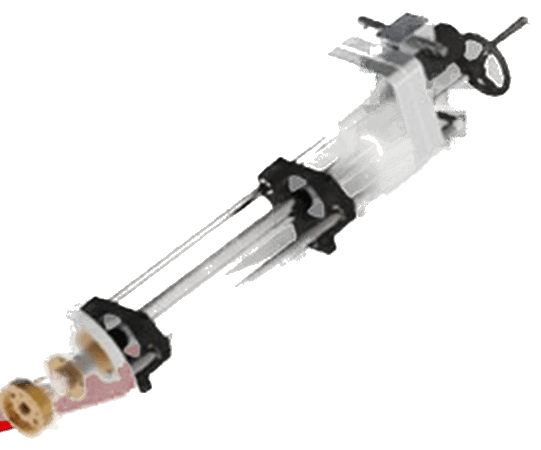

Tri Bar

• Operated with hydraulic motor drive
• Maximum working pressure: 284 PSI (19.6 BAR) @ 100°F (38°C)
• Maximum working temperature: 250°F (121°C) @ 250 PSI (17.2 BAR)

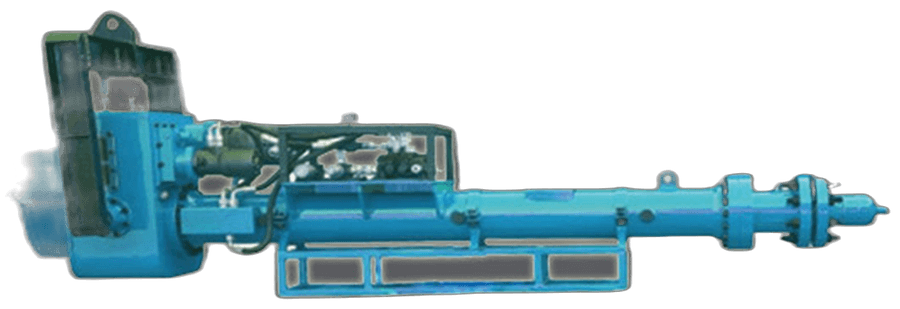

12, 17 & 24 Series

• Driven by hydraulic motor
• Maximum operating pressure: 1480 PSI (100 BAR) @ 100°F (38°C)
• Maximum operating temperature: 700°F (371°C) @ 700 PSI (48 BAR)

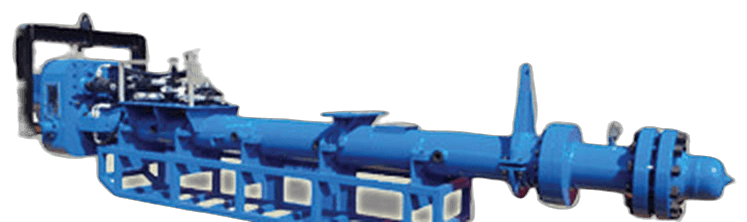

36 & 42 Series

• Operated with dual motor drive
• Maximum working pressure: 1480 PSI (102 BAR) @ 100°F (38°C)
• Maximum operating temperature: 700°F (371°C) @ 700 PSI (48 BAR)
• Available in single / dual motor drive

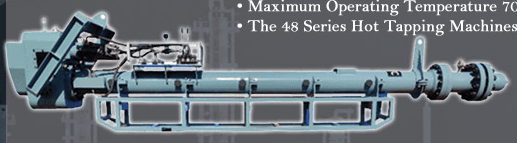

48 Series

• Operated with dual motor drive
• Maximum working pressure: 1480 PSI (102 BAR) @ 100°F (38°C)
• Maximum operating temperature: 700°F (371°C) @ 700 PSI (48 BAR)
• Available in single / dual motor drive

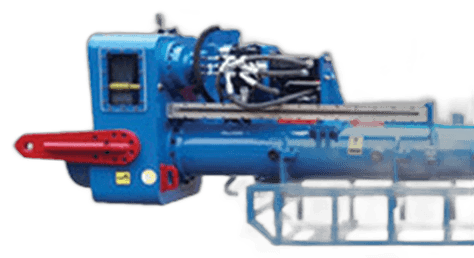

96 Series

• Operated with dual motor drive
• Maximum working pressure: 1480 PSI (102 BAR) @ 100°F (38°C)
• Maximum operating temperature: 700°F (371°C) @ 1065 PSI (73 BAR)
• Available in single / dual motor drive

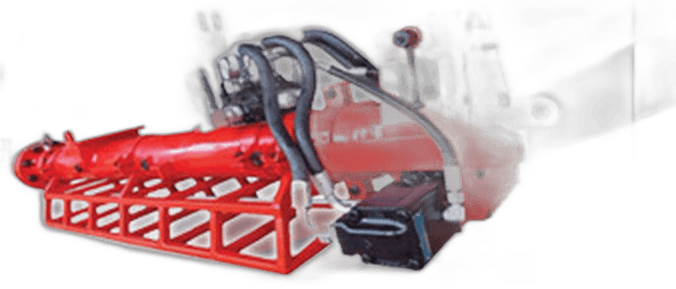

208 A/H, 312 A/H, 316 A/H & 624 H Series

• Driven by hydraulic or pneumatic motor
• Maximum working pressure: 1480 PSI (102 BAR) @ 100°F (38°C)
• Maximum operating temperature: 700°F (371°C) @ 700 PSI (48 BAR)
• Dual drive option available

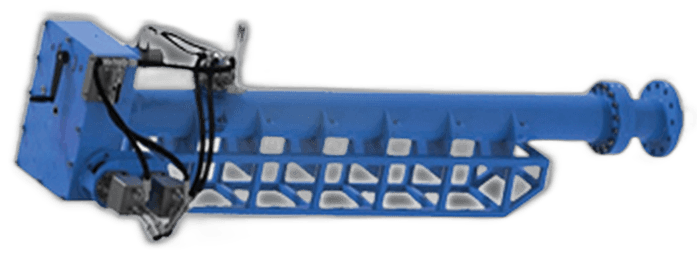

1236 H – 2460 Series

1236 H, 1236 H XL, 1242 H, 2048 H, 2048 H XL, 2048 H XXL, 2460. Driven by worm gear & chain-driven gear box.

• Driven by hydraulic motor
• Maximum operating pressure: 1480 PSI (102 BAR) @ 100°F (38°C)
• Maximum operating temperature: 700°F (371°C) @ 700 PSI (48 BAR)

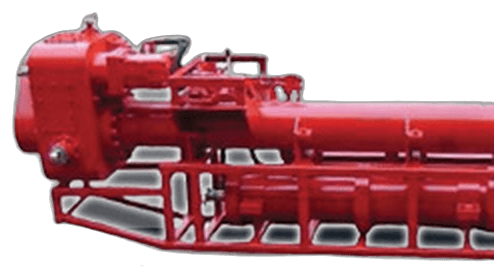

Customised Equipment for Special Applications

• Special-purpose hot tapping machines for high-pressure and high-temperature applications, with pressure balancing unit
• Designed and built to the required range of sizes

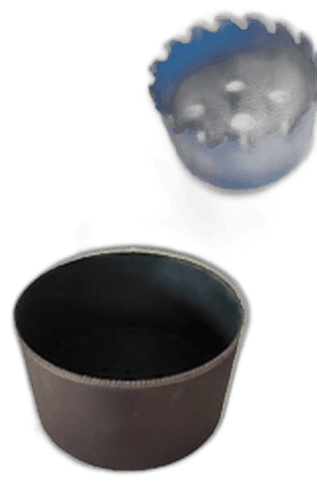

Hot Tap & Line Stop Cutters

HSS cutter and multi-tooth cutter

• Sizes: 3" to 48" (higher sizes on request)
• Tool bit type/grade: HSS, Tungsten Carbide (TC), HSS + TC, Diamond & Multi-tooth

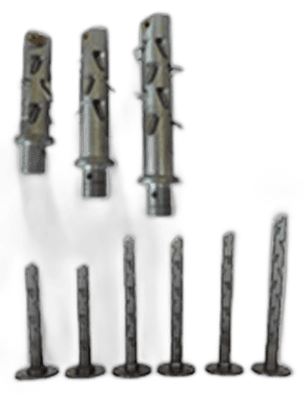

Pilot Drills

Threaded and flanged pilot drills

• Sizes: 2" to 48" (higher sizes on request)
• Multi U-pins for coupon retention on high-velocity flow
• High-quality insert type / replaceable drilling spade

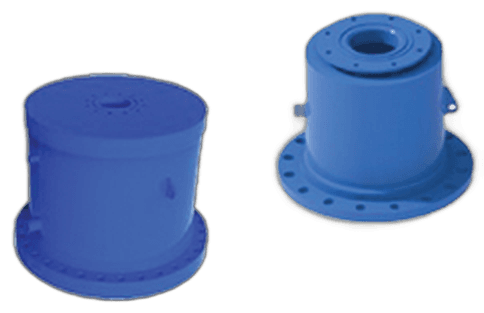

Cutter Housings / Adaptors

• Sizes: 2 inch to 48 inch (higher sizes on request)
• Pressure rating: PN 16, 150#, 300# & 600# (higher ratings on request)

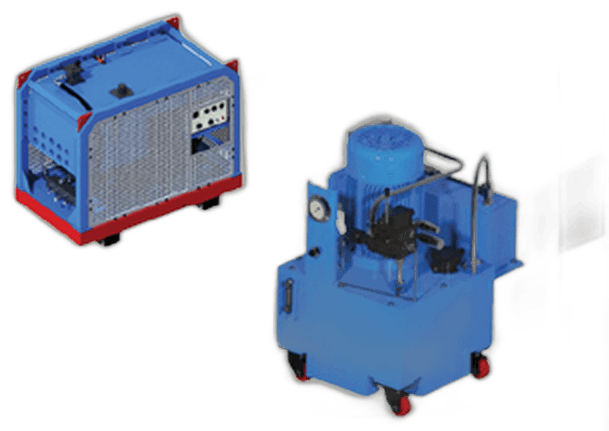

Hydraulic Power Units

• Powered by diesel engine or electric motor
• Built-in relief valve
• Supplied complete with flow and return hoses fitted with couplings

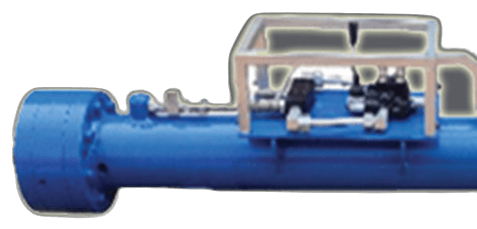

Line Stop Actuators: Hydraulic

• Powered by diesel engine or electric motor
• Built-in relief valve
• Supplied complete with flow and return hoses fitted with couplings

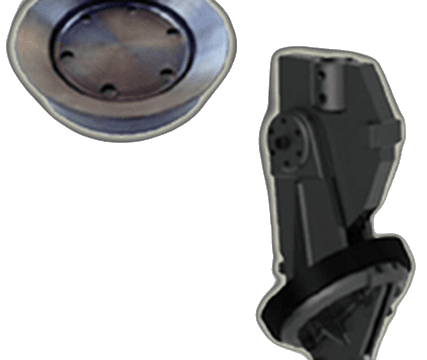

Line Stop Heads & Sealing Elements

• Sizes: 2 inch to 48 inch (higher sizes on request)
• Pressure rating: 150#, 300# & 600# (higher on request)
• Sealing elements: NBR, EPDM, Viton, Neoprene, Poly Acrylic & Silicone

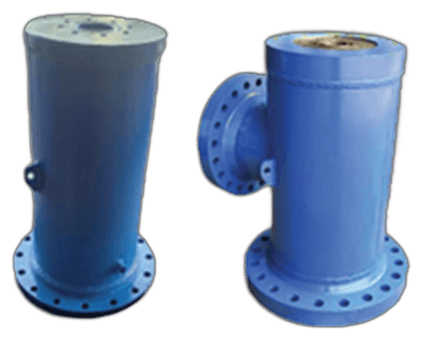

Line Stop Housings

• Sizes: 2 inch to 48 inch (larger sizes on request)
• Pressure rating: 150#, 300# & 600# (higher on request)
• Bypass branch outlet flange connection on request

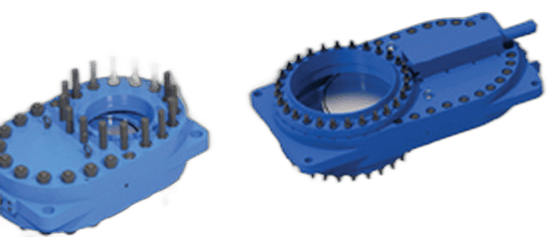

Sandwich Valves

• Restricted height without compromising the design parameters for the pressure class
• Pressure rating: 150#, 300# & 600# (higher on request)
• Manually operated: 2 inch to 16 inch
• Hydraulically operated: 18 inch to 48 inch (higher sizes on request)

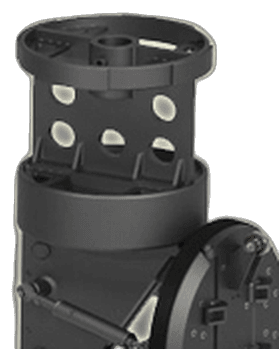

Folding Head Line Stop

• Folding heads for larger NB pipes in low-pressure (up to 8 bar) applications, using a smaller branch opening
• Sizes from 14 inch to 102 inch
• Smaller hot tap helps retain the pipeline's original strength

Hot Tap & Line Stop Fittings

• Sizes: 2 inch to 48 inch (higher sizes on request)
• Designed and manufactured to ASME B31.3, B31.4 & B31.8
• Pressure rating: PN16, 150#, 300# & 600# (higher on request)

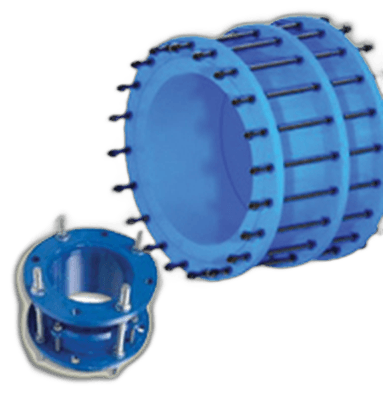

Dismantling Joints

• Available from DN 200 to DN 1200

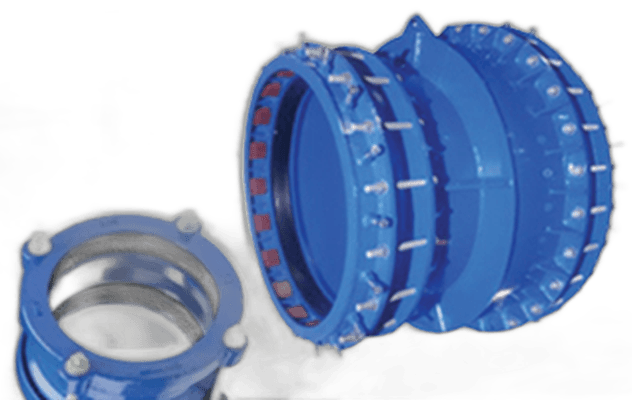

Couplings

• Suitable for any pipe material
• Available with up to 30 mm tolerance
• Angular deflection compensation up to 6°
• Diameters from DN 200 to DN 1200

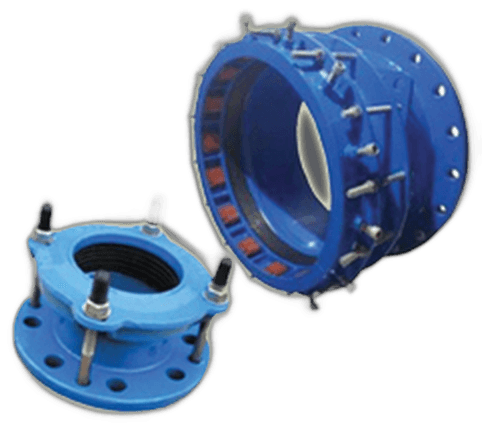

Flanged Adaptors

• Available from DN 200 to DN 1200
• Suitable for any pipe material
• Angular deflection compensation up to 3°
• Available with up to 30 mm tolerance

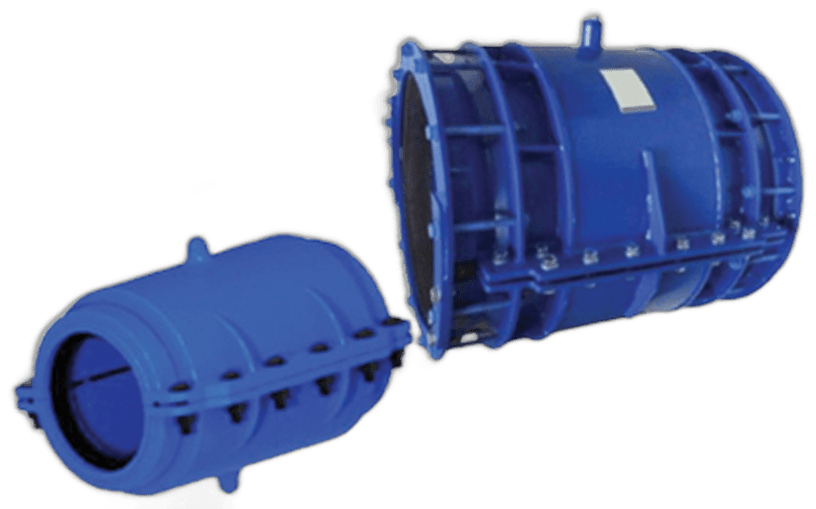

Encapsulation Clamps

• Manufactured in both 30 mm wide-tolerance and 14 mm tolerance versions
• Available diameters from DN 200 to DN 1200

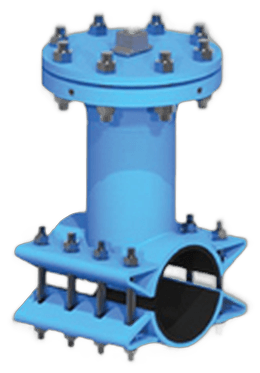

Uni Valve

• Compatible with steel, cast iron, ductile iron, asbestos cement, PVC and MDPE/HDPE pipes
